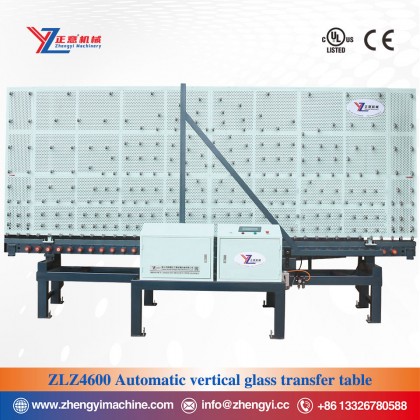

ZLZ4600 Automatic vertical glass transfer table

Automatic vertical glass transfer table

1、The conventional size and length of a vertical glass transfer table are 4.6 meters. The exclusive technology provides the removal of the input and output guide rails of the original edging machine, saving the floor area of the whole line.
2、Set the central axis of the rocker arm of the vertical transfer table according to the length and short of the processed glass, machine can be selected two set of left and one set of right (rectangular glass processing the first transverse release, the last vertical out of the piece)
3、Processing size: minimum 350*350mm, maximum 2800*1800mm. Thickness 3-19mm. Size Size can be customized.
4、Speed range: segmented transmission, transmission frequency control 0.5-25m/min, 4-10 frequency conversion speed regulation per minute (reasonable speed regulation according to the speed of edging machine and the size of processed glass).

Main function (Multiple functions pioneered in the industry)
◆In and out of the stage conveying glass, the inlet section, outlet section and turning arm are controlled by independent frequency converter and independent frequency conversion motor. When processing the glass, there is no need to leave a large gap between the front and back pieces. Similar to the speed of worker put glass, improve production efficiency and safety;

◆When the glass falls, it will automatic make slowly of the speed and the turn arm automatically decelerates to protect the glass edge not damage;
◆Vertical Glass rotating table  The rotary arm quickly falls back and efficiently transfers the next piece of work;
◆It can replace the guide rails at both ends of the original edging machine to save the floor area and omit the loss of the original conveyor belt.
◆The input and output end of the turnaround can be equipped with a conveying chain or synchronous belt auxiliary conveying glass;
◆The conveying structure is divided into two sections, the output end lifting function can adjust the glass grinding amount;
◆The vertical transfer table is controlled by PLC computer and operated by touch screen. Can do the whole line of emergency stop.
◆Optional control cabinet, overall control of wired equipment processing speed and glass thickness;

Our company's Vertical Glass edging production line program is more advanced, reflecting the company adhere to the innovative concept of "intelligent manufacturing drive glass edging high efficiency", It breaks the monopoly market pattern by the glass bilateral grinding line, and is a good choice for single glass processing plants.

Automatic vertical glass transfer table at workshop 1

Automatic vertical glass transfer table at workshop 2

Automatic vertical glass transfer table at workshop 3
