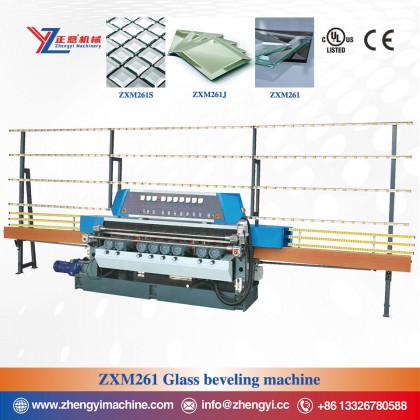

ZXM261 Series Glass Beveling Machine

Mechanical introduction：

Glass beveling machine ZXM261 series for nine grinding heads bevel machine, conventional models of three ZXM261/ZXM261J/ZXM261S, the machine adopts frequency control, bevel width for manual adjustment. This machine is suitable for grinding straight beveling edge and bottom base edge of flat glass, rough grinding, fine grinding, polishing of the beveling edge and grinding of the bottom edge are completed in one processing. The effect after polishing is consistent with the mirror; direct grinding head motor, compact structure, low voice, less failure;the motor controls the overall swing Angle of the double screw, and has the overall advance and retreat function of the grinding head swing frame;with advanced structure, high precision, easy operation, strong stability and other advantages, suitable for mass glass bevel edge grinding.

Main characteristics：

◆Base, girder, swing frame, column, grinding head are high density casting parts, strong and stable fuselage;

◆ABBinternational brand grinding head motor; 2.2KWvariable frequency motorwide range governor,ZHUJIANGworm gear box;

◆High quality alloy steel inserts of40cr steel, the front and back pads are hardened and wear-resistant by55 degrees high frequency quenching;

◆Front pads is combined with small pads construction structure,batch processing Mosaic glass loss splint without replacing the whole plate, reduce the cost of use;

◆Stainless steel water tank, two oil pumps on both sides respectively supply pressure plate, drag plate, lifting structure and other moving parts of lubrication;

◆Aluminum alloy scaffolding row;Italian BARBIERIsynchronous belt transmission; Delxi brand electric;

◆High quality paint shield; unique waterproof technology, girder bottom with water brush;

◆Coarse grinding wheel, fine grinding wheel, polishing wheel all use“XINGLI”brand, fine polishing wheel and felt wheel we use Italian wheels.
