- Product Details
Characteristics:

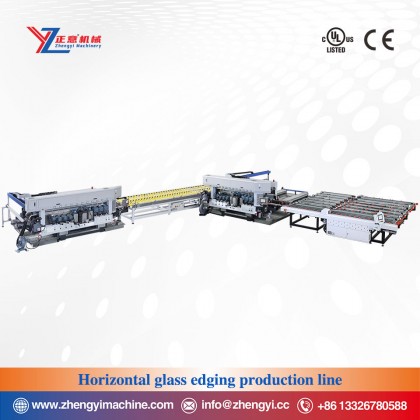

This line is composed with 1# straight line double edger, transfer table (straight type、 L type & suction cup type are also available), 2# straight line double edger can include safety corner. It can be connected with automatic glass loading table, washing machine and automatic unloading table to make a full set of automatic production line. Glass is loading by automatic loading table to transmission table which transmit it to 1# straight line double edger for automatic position grinding . Glass sheet getting into rotating working table to turn around 90 degree and arrive 2# straight line double edger machine for secondary and automatic position grinding then getting into washing machine. Automatic unloading table will put glass sheet on the glass shelf after cleaning and drying. This production line has the features are high precision, easy maintenance, convenient and quick adjustment, simple operation, high automatic level and labor cost saving. Glass processing from loading, grinding, rotating, washing to unloading are finished by one time. According to customer’s space, the production line can be straight type、L type & U type. The glass double edger production line is suitable for processing the craft glass、building door & window glass、solar glass & electric glass that kind of automatic processing line.
Product feature
◆ Opening and closing speed is 1.5m/min, glass polishing processing speed is 1-12m/min.
◆ Suitable for processing architectural glass、bathroom glass、furniture glass and low-e glass.
Type
Specification
Min glass size
350x350mm
Glass thickness
3~30mm
Glass processing speed
1~12m/min
Total power
107.7KW
Total weight
About 12T
Max glass size
4200mmx2500mm can special made)
Max base grinding
5mm
Max chamfer grinding
3mm
Pneumatic working pressure
0.7Mpa
Moving speed
15m/min
Overall size
14000x9200x2300mm
Horizontal automatic loder + double edger production line
L Shape Transferring Table
6m transfer to 3m glass straight line double edger production line
