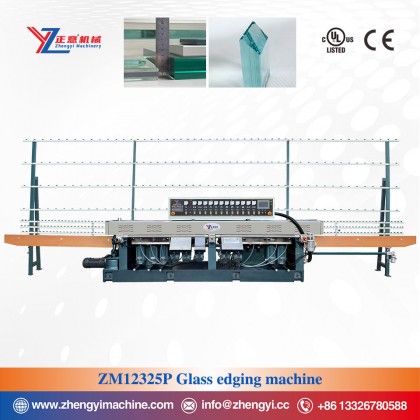

ZM12325P Glass Edging Machine

Mechanical introduction：

Glass edging machine ZM12325P is a straight edging machine with 12 grinding heads with 45 degree function. It is designed with five grinding heads at the bottom edge, five grinding heads at the front chamfering and two grinding heads at the back chamfering. It is especially suitable for grinding and polishing of super thick glass, super white glass, laminate glass, fireproof glass, bulletproof glass, 45 degree glass and other flat materials.This machine is suitable for straight edge polishing and 45 degree edge polishing of plate glass of different sizes and thicknesses, rough and fine grinding polishing is completed once, the polished plane is infinitely close to the smoothness of the original glass.The machine adopts PLC control, touch screen operation, frequency conversion speed regulation, adjustment of different processing thickness, can refer to the digital display table on the front beam for adjustment, the front chamfering grinding head can move synchronously with the front beam; With advanced structure, high precision, easy to operate, the same thickness can be continuous processing and other advantages.

Main Features：

◆INOVANCE PLC, INOVANCE inverter, MCGS touch screen operation, with independent intellectual property rights operation interface;

◆The base, girder, grinding head seat arehigh-quality & high-density castingsstrong and stable, with three identical neutral columns;

◆ABBbrand advanced special pure copper grinding head motor,Schneiderbrand electric;

◆2.2KWfrequency conversion motorlarge-range speed governor,ZHUJIANGworm gear box;

◆Stainlesssteel material insert, stainless steel water tank, multi-channel waterproof process treatment;

◆Choose one of the guide railconveyor chain/timing belt; The thickened square tube truss can carry the original thick glass processing;

◆XINGLI brand advanced grinding wheel, the bottom throw is SD001 after polishing the effect is bright as a mirror;

◆The oil pump feeds the oil lubrication head seat slide plate function to easily adjust the grinding head up and down.

◆White environmentally pads, processing without leaving traces.

◆Floor water tank upgrade: stainless steel 1200*600*350mm (plus filter screen separator).

ZM11325A Glass polishing machine working at customer's factory
