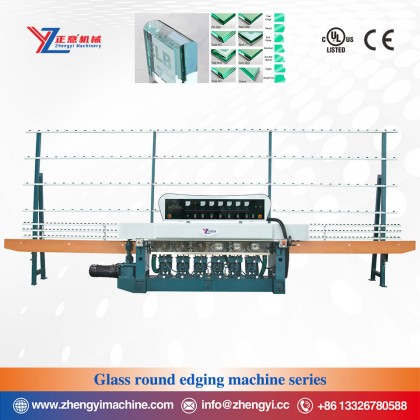

Glass Pencil Edging Machine Series

View : 4417 | By Zhengyi

The ZYM series glass pencil edging machine conventional ZYM6320 for six grinding head all grinding bottom edge, ZYM7320 for six grinding head grinding bottom edge and a grinding head grinding chamfering (especially suitable for making duck OG edge), and ZYM8320 for eight grinding head three models.

Product Details

Mechanical introduction：
The ZYM series glass pencil edging machine conventional ZYM6320 for six grinding head all grinding bottom edge, ZYM7320 for six grinding head grinding bottom edge and a grinding head grinding chamfering (especially suitable for making duck OG edge), and ZYM8320 for eight grinding head three models.Round edging machine can be installed with various types of grinding wheels, suitable for processing flat glass, stone straight line round edge, straight line flat edge, straight line OG edge, etc. Using the forming wheel, coarse grinding and polishing completed in one time, can make the glass, stone edge for high precision, high quality grinding, can also be installed cutting pieces, grooving. Glass pencil edging machine can be electric type, digital display type, computer type.

Main characteristics：
◆Base, girders, grinding head for high-quality high density casting parts solid and stable, unique column design is more stable;
◆Grinding head motor adopts “JIANQIANG”brand advanced special pure copper motor,“DELIXI” brand electrical appliances；
◆2.2KW frequency conversion motor wide range governor, “ZHUJIANG”worm gear box, more lasting transmission;
◆Stainless steel insert, stainless steel water tank, multi-channel waterproof process;
◆Conveyor chain transfer; the thickened square tube truss can bear the thick glass processing of the original piece.
◆“XINGLI”brand advanced grinding wheel, fine polishing grinding wheel for SD001 polishing effect bright as a mirror;
