Specification:

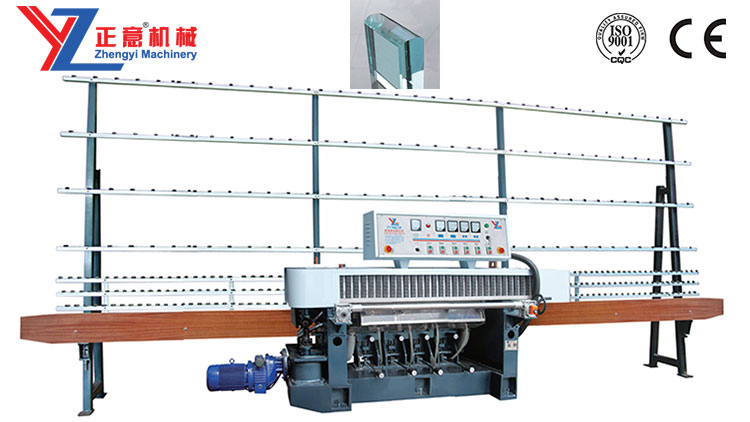

The ZM9325A glass straight line edging machine is suitable for different size and thickness flat glass grinding, it can rough grinding、fine grinding and polishing finish in one time; the polishing flat is similar to the smooth degree of glass body, While adjusting the different processing thickness,(you can reference the digital display in front beam to adjust);front chamfer motor can move synchronically with front beam; with advanced structure; high precision,easy operation. It is the necessary tool for glass machinery.
Characteristics:
1.This
machine is the version of old ZM9325, new surface, and improved multiple
operating mode, that can operate much convenient ;
2.A
special design of the in-feed section for controlling the desired amount of
glass removal without adjusting each spindle individually.
3.The
thickness of processed glass is adjusting by electric control, that can
decreased the working time, and improved the work efficiency.
4.Synchronous
belt transmission, small piece of glass processing more accurate;
5.Min
glass processing size:45mm
◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body, square beam never deformation.
◆Senior special energy-saving motors ’XINDONGYA’ or‘JIANQIANG’brand,advanced turbine gearbox; CHNT brand electric appliance.
◆2.2KW big range speed governor, JIALI worm gear box, transmission more durable.
◆Chain transfer, thicken square tube frame can load thicken glass to process.
◆The wheel is used by CHAORUI、Oasis New; bottom polishing wheel is10S40、CE3 or SD001,the polishing effect is similar to mirror surface;
◆This machine can accord customer’s requirement to design.
ZM9325A Glass polishing at the workshop ,customer visit our company
Strong cross beam of our polishing machine

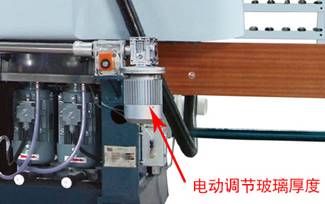

A type Glass thickness adjust by motor and showed on a digital display

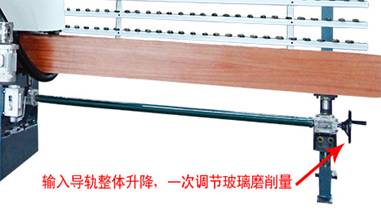

A type Input synchronous lifting can adjust the glass grinding
