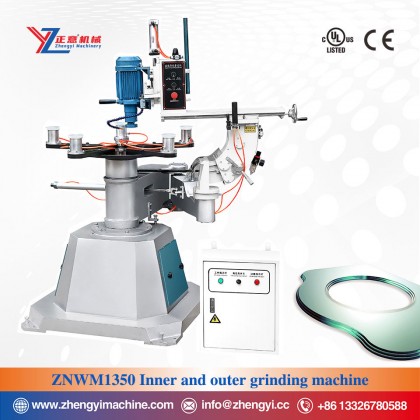

ZNWM1350 Inner And Outer Grinding Machine

Mechanical introduction：

The base, swing arm and five-star suction cup base of the glass inner and outer circles grinding machine ZNWM1350 are castings, which are suitable for processing the periphery and beveled edges of round and oval special-shaped glass. The glass is adsorbed on the suction cup by vacuum, and the motor drives the turntable to rotate or an independent satellite turntable on the separate drive disc to rotate, so that the machine can process special-shaped flat glass with a rotation diameter of 700-2100mm and 100-700mm. The rotation speed of the turntable can be adjusted arbitrarily during operation. This machine can also semi-automatically grind simple shape glass by using a cylinder. When grinding the perimeter, three grinding wheels can be installed for rough grinding, fine grinding and polishing. When grinding the beveled edge, install a bowl grinding wheel, tilt the grinding head back, and adjust the angle of the bevel to grind the end face.

Main Features：

◆ZNWM1320 glass inner and outer circle grinding machine is a new model improved on the basis of special-shaped machine ZDYM1320 type, which in addition to all the functions of ZDYM1320 type, it can also grind inner circle, inner oval and various special-shaped inner circle.
◆The glass is adsorbed on the suction cup by vacuum, and the motor is equipped to drive the satellite turntable to rotate, and the rotation speed of the turntable can be adjusted arbitrarily during work;
◆Three grinding wheels can be installed for coarse grinding, fine grinding and polishing. When grinding the beveled edge, install a bowl grinding wheel, tilt the grinding head back, and adjust the angle of the bevel to grind the end face.
