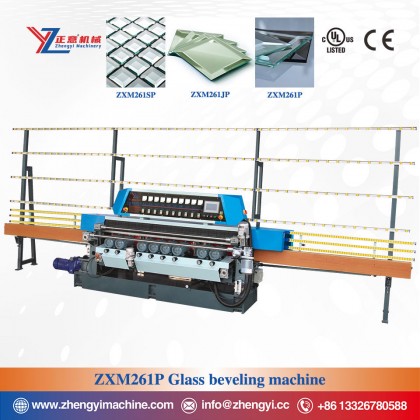

Glass Beveling Machine
◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body.
◆ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
◆The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
- Product Details
Characteristics of Glass Beveling Machine:
This glass beveling machine is a nine-head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles. Control system uses PLC control, automatic, manual conversion. Man-machine interface clearly shows that the glass thickness, width and angle of hypotenuse, and the remaining glass thickness and various parameters, such as processing speeds, transmission speed using variable frequency adjustment.
Chain plates are made of thicker steel plates and the slide gibs are made with a number of special processing techniques with such features as superior abrasion resistance, deformation resistance, and stable operation etc. The motor of the machine has a solid body, high precision, low-power consumption, suitable for beveling and milling processing of large quantities of glass parts.
Advantage of Glass Beveling Machine:
◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body.
◆ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
◆The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
◆Specially design for small briquette in front delivery pad, when you large quantities to process mosaic glass,even the delivery pad is wear, it don’t need to change the whole delivery pad, only change the small briquette is ok; that you can save a lot of cost.
◆Aluminum scaffolding, timing belt transmission.
◆stainless steel water tank、there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
◆Electrical appliances used the Tengen or DELIXI brand and so on high-quality product.
◆Rough grinding wheel, finish grinding wheel, polishing wheel: it all useChinahigh-quality
wheel andItalywheel
◆Full-automatic control, it is suitable for max bevel width market.
◆Glass Beveling machine can accord customer requirement to design.
ZXM261 Installation of the glass straight line beveling machine at workshop
The best motor ABB brand install at the glass beveling machine
Glass beveling machine showed at exhibition
Glass beveling machine is working at customer's factory
