Glass Beveling Machine

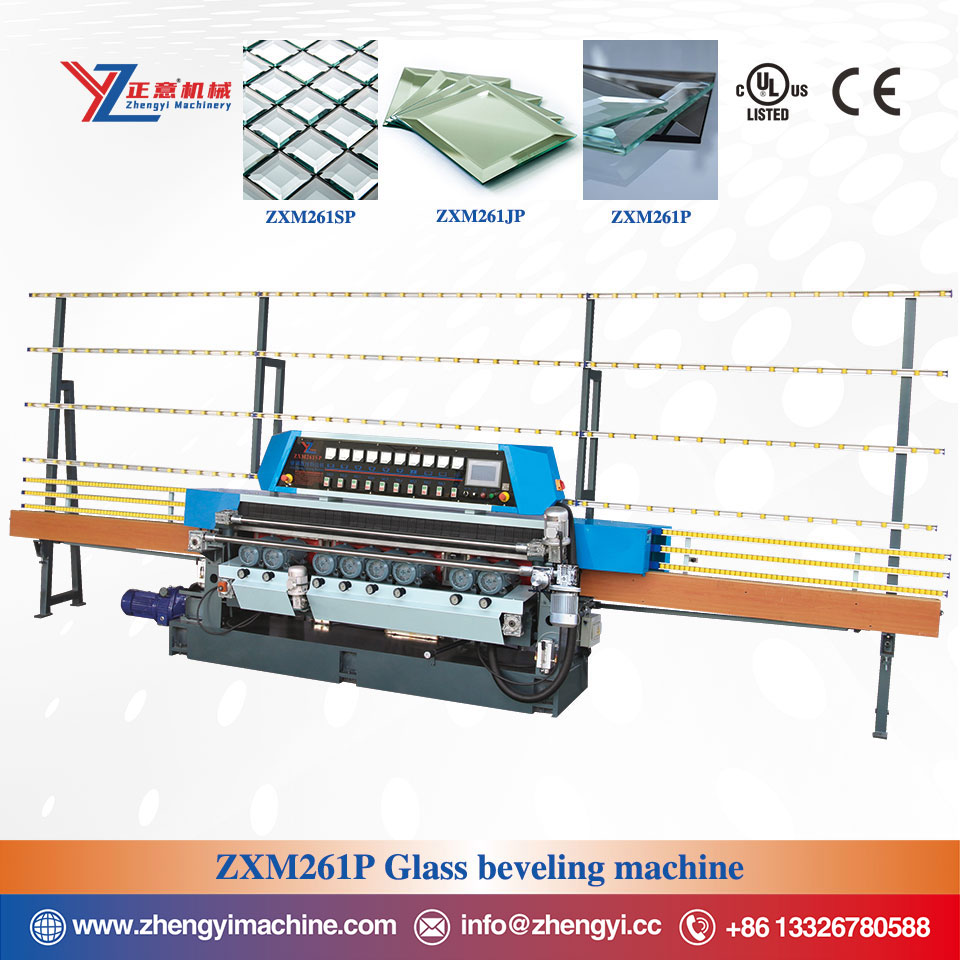

ZXM261P 9-Spindle Glass Beveling Machine for Flat Glass Processing

The ZXM261P Series is a 9-spindle glass beveling machine designed for straight-line bevel grinding, bottom-edge finishing and polishing of flat glass. Standard models include ZXM261P, ZXM261JP and ZXM261SP. The machine uses a PLC control system with touch-screen operation, allowing operators to enter the required bevel width and complete mechanical adjustment through the control interface.

Designed for processing operations that require a consistent beveled edge and polished finish, the ZXM261P Series combines rough grinding, fine grinding, bevel polishing and bottom-edge processing in one workflow. It is suitable for glass processors producing mirrors, furniture glass, decorative glass and other flat-glass products with straight beveled edges.

Key Features of the ZXM261P Series

• Nine grinding heads for sequential bevel grinding, fine grinding, polishing and bottom-edge processing.
• PLC control system with INOVANCE inverter and MCGS touch-screen operation interface.
• Touch-screen bevel-width input with mechanical automatic adjustment.
• Direct-drive grinding-head motors for a compact machine layout.
• Twin-screw control for the grinding-head swing angle and integrated advance-and-retreat movement of the swing frame.
• High-density cast components used for the base, beam, swing frame, columns and grinding-head structure.
• Stainless-steel water tank and lubrication arrangement for relevant moving components.
• Coarse grinding, fine grinding and polishing wheel arrangements for the required bevel and surface finish.

Flat Glass Bevel Grinding and Polishing Applications

The ZXM261P Series is intended for flat-glass products that require a straight beveled edge with a finished bottom edge. Depending on the selected configuration and processing requirement, it can be considered for mirror production, furniture glass, decorative glass panels and similar applications where edge appearance and processing consistency are important.

• Mirror glass with straight beveled edges.
• Furniture glass for tables, cabinets, shelves and interior fittings.
• Decorative flat-glass panels requiring a polished bevel.
• Architectural or interior glass components where the edge treatment is visible.

Control and Adjustment System

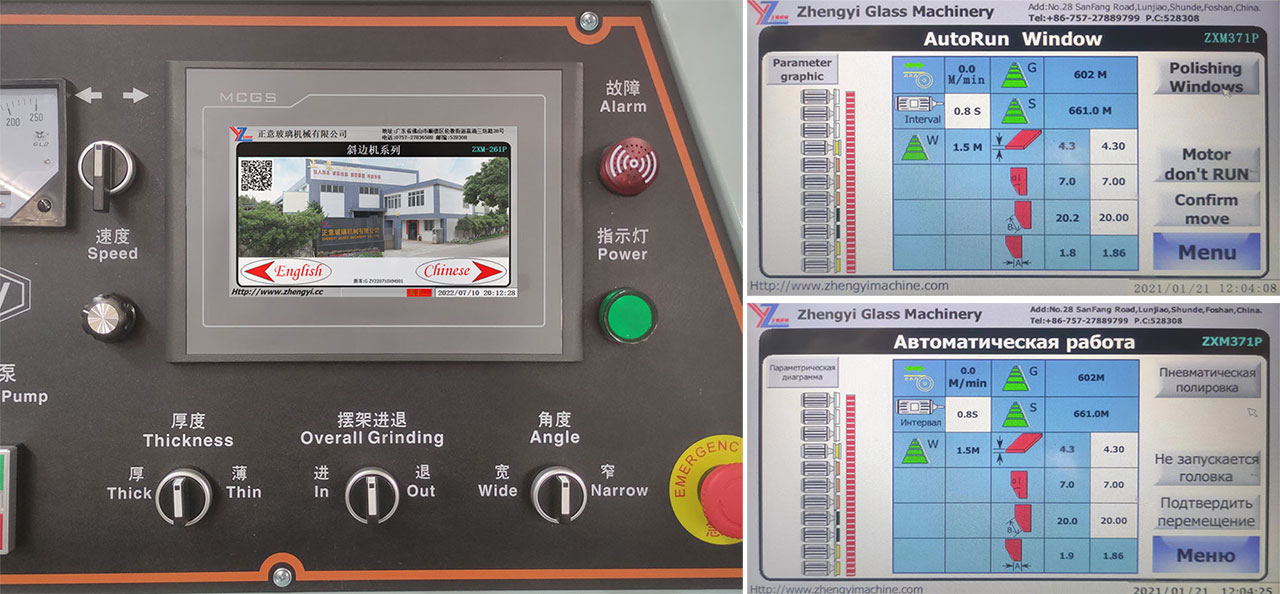

The ZXM261P Series uses a PLC-based control system with an INOVANCE inverter and MCGS touch-screen interface. Operators can enter the bevel-width requirement on the screen, while the machine supports mechanical adjustment for the corresponding processing setting. This arrangement is intended to support repeatable setup when processing flat-glass workpieces with defined bevel requirements.

The grinding-head swing frame is controlled through a twin-screw arrangement, with integrated advance-and-retreat movement. Buyers evaluating this model should confirm their required glass dimensions, bevel width, processing sequence and target finish before selecting the applicable version within the ZXM261P Series.

Machine Structure and Processing Components

The base, beam, swing frame, columns and grinding-head structure use high-density cast components. The machine also includes a stainless-steel water tank and lubrication support for relevant moving parts. Its grinding and polishing arrangement includes coarse grinding wheels, fine grinding wheels and polishing wheels selected for the planned edge-processing workflow.

For the ZXM261P Series, the final wheel arrangement and operating setup should be matched to the glass type, required bevel profile and target polished finish. This is especially important when a project involves different glass thicknesses, frequent product changes or specific appearance requirements for the final edge.

Information to Confirm Before Selecting a ZXM261P Model

• Glass thickness range and glass type.
• Minimum and maximum glass dimensions.
• Required bevel width, angle and finished-edge appearance.
• Expected production volume and product-change frequency.
• Whether the machine will connect with washing, loading, unloading or other glass-processing equipment.
• Workshop layout, available power supply, water supply and drainage conditions.
• Destination market and export packing requirements where applicable.

Related Glass Beveling Machine Options

The ZXM261P Series is one model within Zhengyi Glass Machinery's glass beveling machine range. Buyers comparing different grinding-head configurations, lifting structures or processing capacities can review the complete glass beveling machine category to identify a model that better matches their glass size, production workflow and edge-finishing requirements.

Frequently Asked Questions

What type of processing is the ZXM261P Series designed for?

The ZXM261P Series is designed for straight-line bevel grinding, bottom-edge processing and polishing of flat glass. It combines multiple grinding and polishing stages in one processing workflow.

How many grinding heads does the ZXM261P Series have?

The ZXM261P Series is described as a nine-grinding-head beveling machine. The grinding-head arrangement supports rough grinding, fine grinding, bevel polishing and bottom-edge processing.

What control system is used on the ZXM261P Series?

The machine uses a PLC control system with an INOVANCE inverter and an MCGS touch-screen operation interface. Bevel width can be entered through the touch screen for mechanical adjustment.

What should be provided for a machine evaluation?

Please provide the glass thickness range, glass dimensions, target bevel width, required finish, expected production volume, workshop utilities and any planned production-line connection. This information helps determine whether the ZXM261P Series and its applicable configuration match the processing requirement.

Where can other beveling-machine models be compared?

Other models can be reviewed on the glass beveling machine category page, where buyers can compare the ZXM261P Series with other beveling-machine options.

ZXM261P Series Glass Beveling Machine in Operation

The following video and images show the ZXM261P Series equipment, its processing sections and reference installation scenarios. This 9-spindle glass beveling machine is intended for straight-line bevel grinding, bottom-edge finishing and polishing of flat glass. Actual machine selection should be based on the required glass size, thickness range, bevel width, edge finish and production workflow.

ZXM261P 9-Spindle Glass Beveling Machine Overview

The ZXM261P Series is configured for sequential bevel grinding, fine grinding, polishing and bottom-edge processing. The machine uses a PLC control system with touch-screen operation and bevel-width adjustment for flat-glass processing requirements.

Glass Bevel Grinding and Polishing Section

The grinding and polishing arrangement is used for processing straight beveled edges and finished bottom edges on flat glass. The applicable wheel setup should be selected according to the required bevel profile and surface finish.

Grinding Head Assembly

The ZXM261P Series uses a multi-head processing arrangement with direct-drive grinding-head motors. Its grinding-head system supports the sequential processing stages required for bevel grinding and polishing.

Cast Machine Structure

The base, beam, swing frame, columns and grinding-head structure use high-density cast components. This structural arrangement supports the machine during flat-glass bevel-processing operations.

Processing Components and Water System

The machine includes a stainless-steel water tank and lubrication support for relevant moving parts. Water supply, drainage and routine maintenance requirements should be considered when planning the workshop installation.

ZXM261 Series Installation and Application References

These reference images show ZXM261-series beveling equipment in installation, exhibition and workshop-operation contexts. For an actual project, the machine footprint, glass infeed and outfeed direction, utility access, drainage arrangement and connection with other glass-processing equipment should be reviewed in advance.

ZXM261 Series Workshop Installation

ABB Grinding Head Motor Configuration

The ZXM261P Series product information lists ABB grinding-head motors as part of the machine configuration. Electrical requirements should be confirmed according to the applicable model and destination market.

ZXM261 Series Equipment Display

ZXM261 Series in Workshop Operation

The operating image provides a reference for how ZXM261-series equipment can be arranged in a glass-processing environment. The actual setup should match the workpiece size, operator workflow and planned material-handling method.

Compare Other Glass Beveling Machine Models

The ZXM261P Series is one model within the Zhengyi Glass Machinery beveling equipment range. Buyers comparing grinding-head configurations, lifting structures or different flat-glass processing requirements can review the glass beveling machine category for additional model options.
