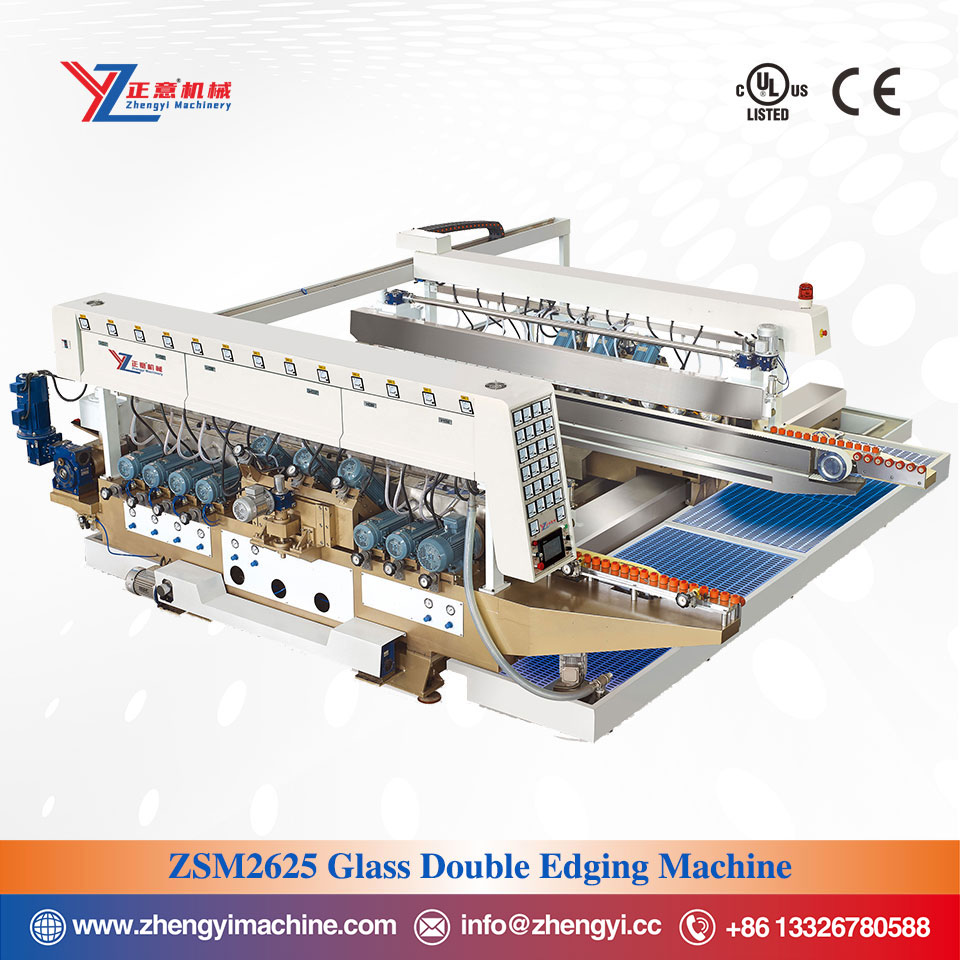

Glass Double Edging Machine

View : 3917 | By Zhengyi

Product Details

Characteristics:

Glass double edging machine series, suitable for processing glass, furniture window glass, building glass, home appliance glass, solar glass, insulating Low-E glass and other types of double linear edging, with high speed, high polishing brightness. The machine adopts high precision transmission structure of double linear guide rail and double ball screw. The electrical control part adopts PLC programmable computer system, equipped with high-grade man-machine interface touch screen operating system.
Optional safety chamfer corner type, film removal type or polishing enhanced type. The film remove grinding head can reduce the height of the grinding head use for normal grinding head; the glass double edging machines from ZHENGYI with advanced structure, parts processing precision, exquisite assembly technology, high quality accessories, stable performance, excellent quality, simple and convenient operation and maintenance, polishing clear and bright through cutting, no grinding head’s lines, no hazy edge, no edge collapse phenomenon, the effect is very stable and so on advantages, is a good choice for customers

Main characteristics：
◆The main body of the machine adopts anti-subversion and anti-deformation design, stable and reliable.
◆Humanized design of the main drive, convenient installation, debugging and maintenance. Good process, reliable work, better synchronization, to ensure that the glass meets the requirements.
◆Polishing parts special design: no side channeling, small vibration, bearing capacity, sensitive action. This structure can make the polishing effect better and more stable.
◆The synchronous belt adopts Italian famous brands such as MEGADYNE and BARBIERI and has passed strict quality inspection. To ensure the glass size and technical requirements
◆All parts are processed according to strict production technology and strict quality inspection.
◆Chamfering and pressing adopt automatic lifting structure.
◆Diagonal error ≤0.5mm/m glass parallel error ≤0.2mm/m chamfering width error ≤0.2mm/m.

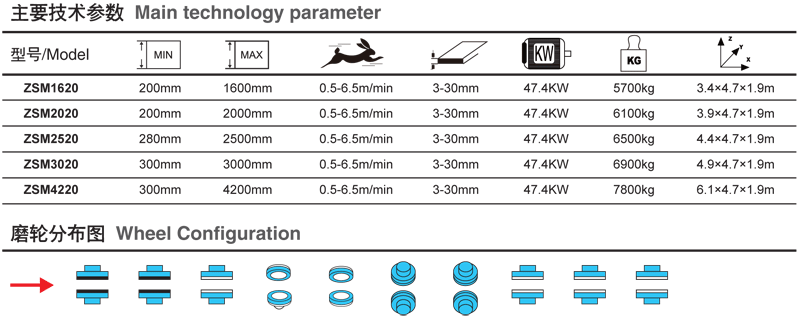

Glass double edging machine specifications are more, can be customized according to customer needs.
