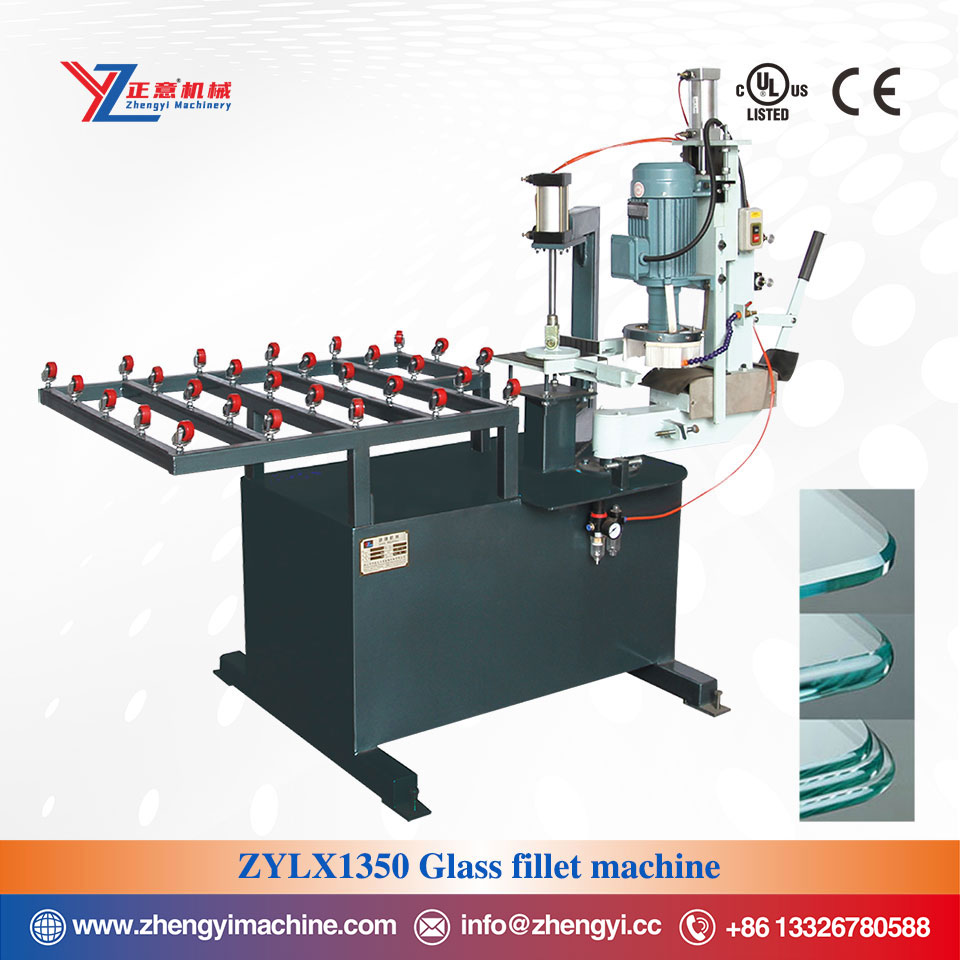

Glass Fillet Machine ZYLX1350

Characteristics:
ZYLX1350 glass fillet machine adopts pneumatic pressure stability of flat glass, glass can be formed into rectangular round: round edge, square edge, OG edge, a pneumatic lifting grinding head, grinding head can be installed 1, 2 for coarse grinding, fine grinding and polishing. The machine features: convenient operation, suitable for processing large quantities, consistent point of view angle of R.

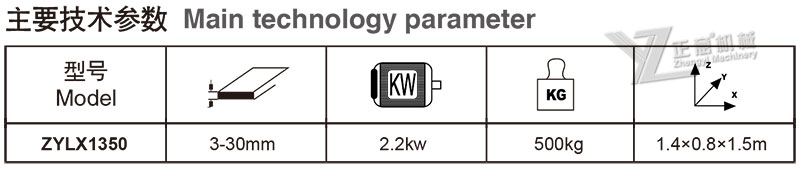

Technical parameters：
Max processing size:1500x1600
Glass thickness:3~40mm
Weight : 500KG
Power : 2.2KW
Machine overall size: 1400*800*1500mm

Install workshop of the glass fillet machine
