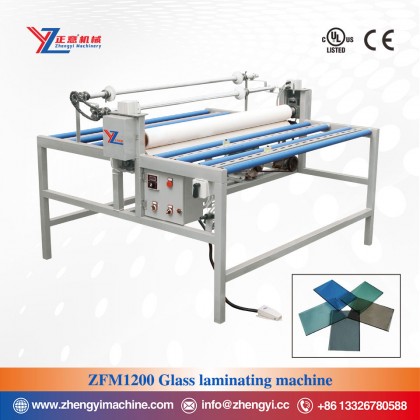

Glass Laminating Machine
Glass
laminating machine ZFM1200 is composed of up and down rubber rollers, frames,
power transmission and control devices, film frames, etc., with flat film, no
wrinkles, no bubbles, long service life and other characteristics, conveying
using glue sticks, can avoid scratches on the surface of the work piece; When
the film is loaded,
- Product Details
Mechanical introduction：

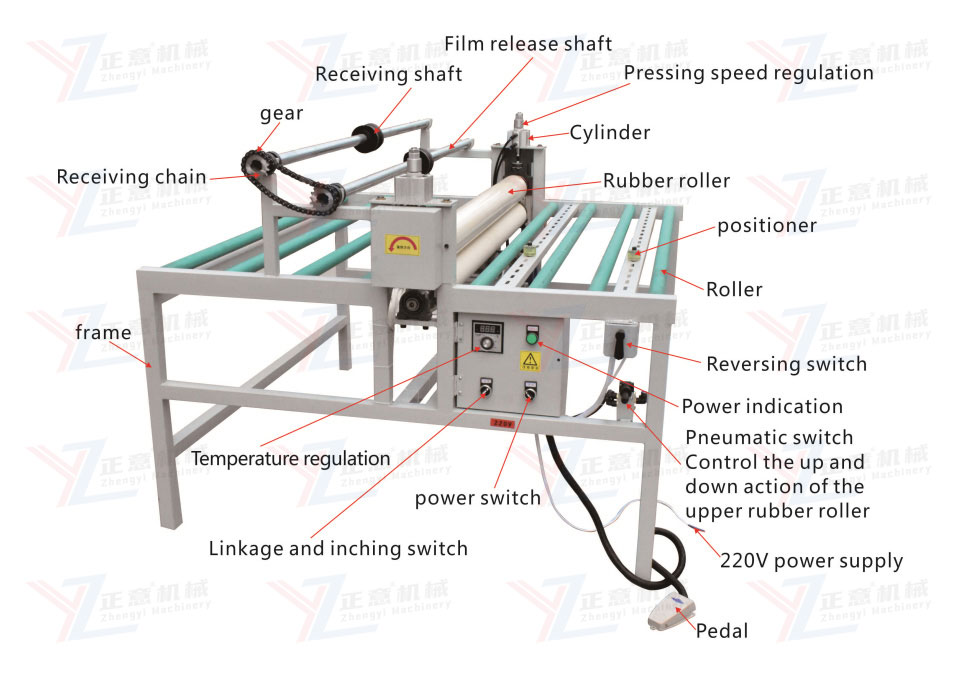

Glass laminating machine ZFM1200 is composed of up and down rubber rollers, frames, power transmission and control devices, film frames, etc., with flat film, no wrinkles, no bubbles, long service life and other characteristics, conveying using glue sticks, can avoid scratches on the surface of the work piece; When the film is loaded, the laminating rod is freely and synchronously lifted and lowered by the cylinder; The gap height can be adjusted according to the thickness of the work piece. Easy to operate; Stable performance.
Laminating machine have many types of functions, processing width and minimum size can be customized, and you can also choose single-sided lamination or simultaneous double-sided film, plus automatic film cutting, electric feeding table, feeding speed frequency conversion adjustable and other functions.
Technical parameters:
Min processing size :300x300
Max processing size:1200x2500
Glass thickness:2~40mm
Weight: 500KG
Power: 2.2KW
Machine overall size: 2000*1300*1700mm
