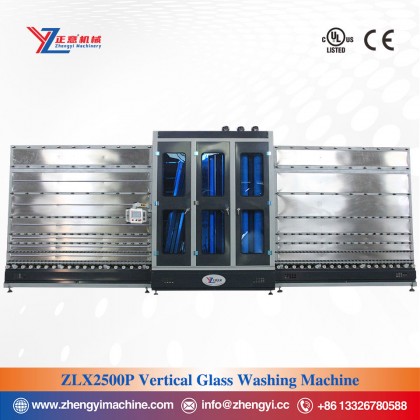

Vertical Glass Washing Machine ZLX2500P

Vertical glass washing machine ZLX2500P is a special equipment for the production and processing of glass washing in construction, building materials, decoration and other industries, suitable for cleaning flat glass with a thickness of 3-25mm and a maximum height of 2500mm.The machinery is mainly composed of cleaning box, drying box, transmission system, frame, water tank, air supply box, electrical control and other parts. The whole cleaning and drying process is fully automatic and does not require manual operation. This machine adds PLC control touch screen operation function on the basis of ordinary vertical cleaning machine, and the height of this model can be customized 1600-2500mm.

Main Features：

◆PLC control touch screen operation, three inverters control speed;

◆The sheet metal of the cleaning part in contact with the water is all made of stainless steel. The cleaning box is made of thickened stainless steel welded as a whole, which has high strength and does not deform;

◆(Three pairs of brush configuration) six pieces of diameter 180mm high temperature resistant wire brushes + four sprays, glass cleaning is clean, fast. The brush is equipped with two hard bristle brushes with cylinder lifting, which can wash Low-E glass;

◆Stainless steel spring can automatically adjust 3-25mm cleaning glass thickness;

◆The components and screws of the part in the cleaning box that are in contact with the water are made of stainless steel, copper, waterproof aluminum, nylon and other materials, which do not rust for long-term use and are convenient for maintenance;

◆The air-drying box glass frame is evenly welded with stainless steel, and the equipment has no rust for long-term use and will not cause secondary glass pollution;

◆It adopts two pairs of air knife configuration, which has large wind power, good air drying effect, and heating system. The unique circulating wind glass air drying system saves energy and has low noise (no heating in winter, the air temperature can reach 40 degrees).
