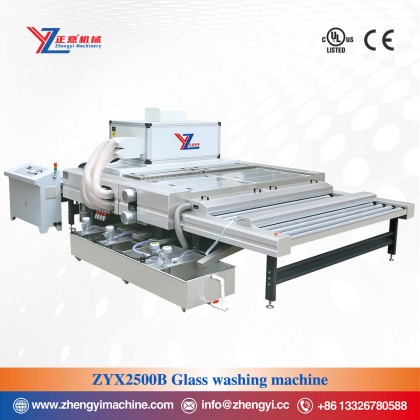

High Speed Glass Washing Machine ZYX2500B
Glass washing machine
ZYX2500B model is an air knife type cleaning machine, the maximum cleaning
width is 2500mm, the maximum speed is 16m/min;standard equipped with frequency
conversion speed regulation, two pairs of air knives with one oblique all the
time, with electric integral lifting, soft brush washing Low-E glass and other
functions. It is suitable for cleaning and blowing drying of flat glass, and is
a necessary equipment for glass deep processing enterprises
- Product Details
Glass washing machine ZYX2500B model is an air knife type cleaning machine, the maximum cleaning width is 2500mm, the maximum speed is 16m/min;standard equipped with frequency conversion speed regulation, two pairs of air knives with one oblique all the time, with electric integral lifting, soft brush washing Low-E glass and other functions. It is suitable for cleaning and blowing drying of flat glass, and is a necessary equipment for glass deep processing enterprises. Our glass washing machine series products are complete, including ordinary glass series, coated glass series, electronic photovoltaic glass series, etc. The thickness of the cleaning glass is from 3mm-50mm, the fastest speed customization can reach 18m/min, and the cleaning width is 1600-3300mm according to the requirements.The cleaning section and air drying can be lifted and lowered as a whole, with digital display.。It can be specially designed according to user requirements. It is more conducive to connecting glass edge grinding machine production line, glazing line, insulating glass production line, safety glass production line, etc.
Main Features:
◆The main drive is gear transmission, frequency conversion speed regulation, digital display, and the brush roller rotation of the cleaning part is driven by the independent belt transmission of the upper and lower sets of motors, with stable rotation speed and long service life.
◆The sheet metal of the cleaning part in contact with the water is all made of stainless steel.
◆The whole machine conveying rubber roller adopts vulcanized rubber fully coated structure (it is strictly forbidden to contact acid liquid).
◆The cleaning department and air dry part are lifted as a whole, and the maximum lift is: 350mm, which is convenient for cleaning and maintenance.
◆Three pairs of brushes (φ150mm) configuration (washing LOW-E class selection: the upper brush is equipped with two hard brushes with cylinder lifting, plus a soft brush, washable LOW-E glass, ordinary coating and sunlight coated glass, two hard brushes can be lifted by cylinder when washing coated glass, without damaging the coating surface).
◆The fan inlet chamber is equipped with an air filter, the air volume is large, the glass air drying effect is good, the whole wind box is installed in the upper part of the studio, and the cleaning and air drying parts are lifted and lowered at the same time, and do not occupy the production site.
◆Always one oblique two pairs of air knife configuration, strong wind, good air drying effect, with heating system. (The oblique air knife is the most effective device for thick glass tail without water marks, in addition, the air knife can be equipped with two straight and one oblique three pairs of air knife configuration)
◆The fan is equipped with air heating function, at low temperature, the air drying effect is more obvious, and the water tank is equipped with water heating function;
