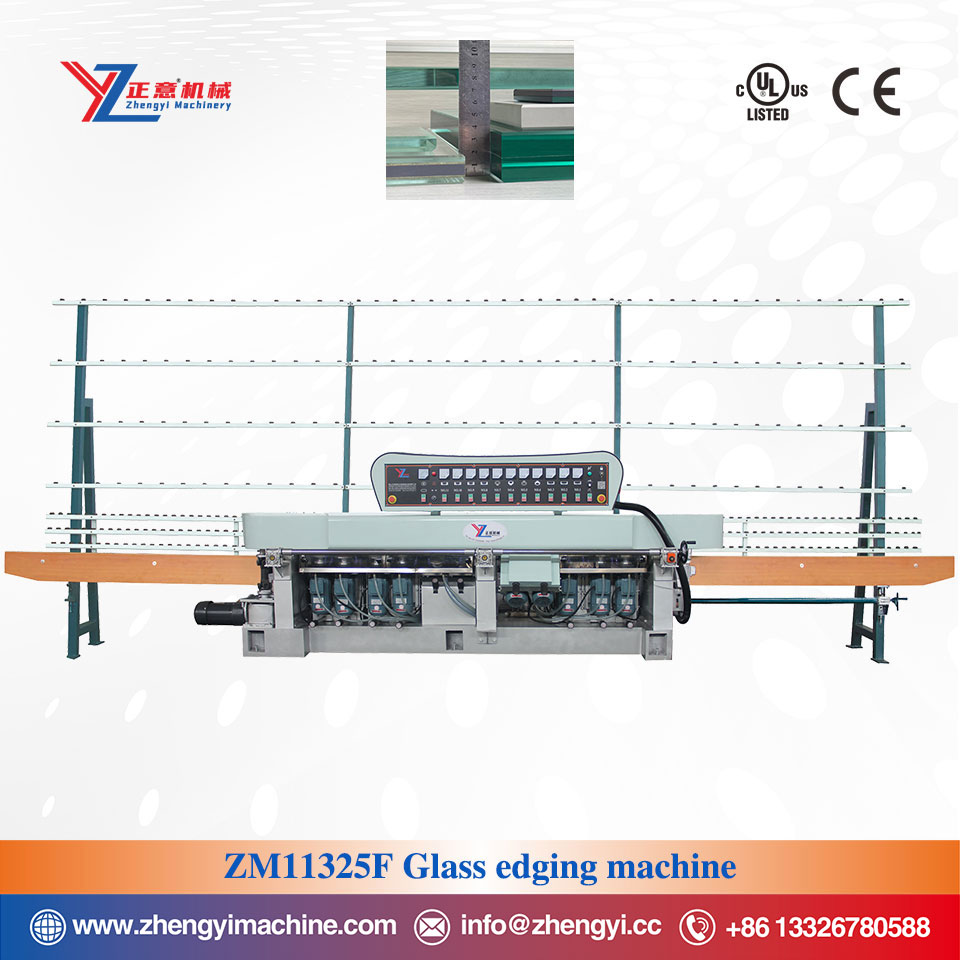

ZM11325F Glass Polishing Machine

Mechanical introduction：

Glass Polishing Machine ZM11325F is eleven grinding head straight edging machine,the bottom edge is designed with seven grinding heads, which is especially suitable for grinding and polishing of super white glass, laminated glass, fireproof glass, bulletproof glass and other special glass. This machine is suitable for straight edge and angular grinding of plate glass of different sizes and thicknesses. Rough and fine grinding polishing is completed once, and the polished plane is close to the smoothness of the glass parent; the machine adopts frequency conversion speed regulation. When adjusting different machining thickness, it can be adjusted by referring to the digital display table on the front beam. The front chamfering grinding head can move synchronously with the front beam. With advanced structure, high precision, easy to operate, the same thickness can be continuous processing and other advantages.

Main characteristics：

◆Base, girders, grinding head for high-quality high density casting parts solid and stable, unique column design is more stable;

◆Grinding head motor adopts“JIANQIANG”brand advanced special pure copper motor,“DELIXI”brand electrical appliances；

◆2.2KW frequency conversion motor wide range governor,“ZHUJIANG”worm gear box, more lasting transmission;

◆Stainlesssteel insert, stainless steel water tank, multi-channel waterproof process;

◆Conveyor chain transfer; the thickened square tube truss can bear the thick glass processing of the original piece.

◆“XINGLI”brand advanced grinding wheel, fine polishing grinding wheel for SD001 polishing effect bright as a mirror;

◆Oil pump lubrication grinding head seat sliding plate function easily adjust the grinding head up and down;

◆Ordinary straight edge machine function plus multilevel edge function, can be 45°-90°arbitrary electric adjustment glass edging machine;

◆White environmental protection pads, processing leaves no trace.

◆Floor water tank upgrade: stainless steel 1200*600*350mm(plus screen clamp).

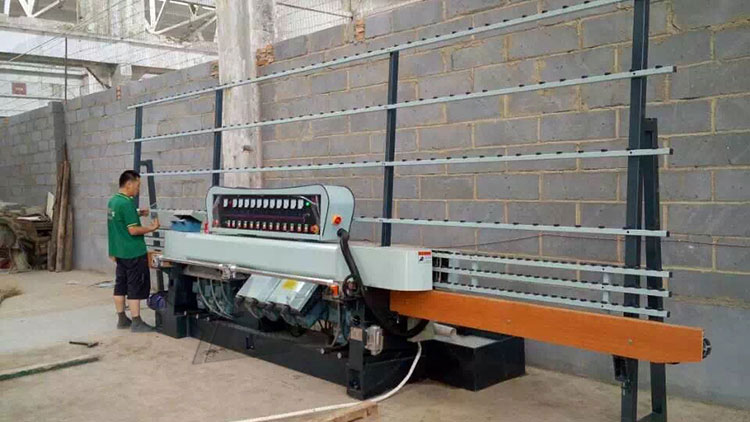

ZM11325 Glass polishing machine at customer's factory

Glass polishing machine install at workshop
