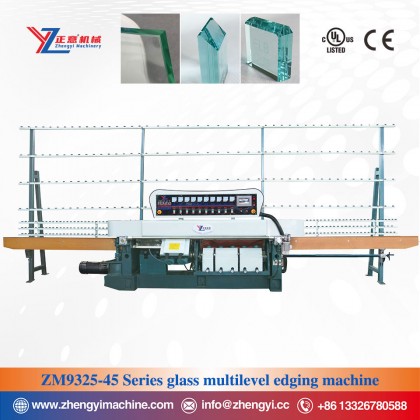

ZM9325-45° Glass Flat Edger & Variable Mitering Machine

Mechanical introduction：

Glass Flat Edger & Variable Mitering Machine ZM9325-45 series conventional models a total of four,ZM9325-45 is basic type, ZM9325-45A is electric type, ZM9325-45E is digital display type, and ZM9325-45P is computer type. This machine is mainly based on ZM9325 series edge grinding machine to increase the function of grinding multilevel edge, bottom base edge 5 grinding heads mounted on the swing frame, electric adjustment angle, in order to grind any angle between 45° to 90°.That is, multiple lines are ground on the edge of the glass several times, thus achieving multilevel edges. Glass variable miter machine is suitable for straight edge and angular grinding of flat glass of different sizes and thicknesses, rough and fine polishing is completed in one time, the polished plane is close to the smoothness of the glass matrix; The machine adopts frequency conversion speed regulation, electric adjustment angle, adjustment of different processing thickness, can be adjusted by referring to the digital display table on the front beam, the front chamfering grinding head can move synchronously with the front beam. This machine has advanced structure, high accuracy, practicability, easy to operate, is the preferred edge grinding machine for aquarium, showcase glass, furniture glass, etc.

Main structure and components

（一）Base, girders, grinding head seat and other high-quality casting parts are solid and stable, the center column is more stable;

（二）Oil pump lubricate the sliding plate structure of the grinding head seat, easily adjust the motor grinding head down;

（三）Conveyor chain transmit; thickened square pipe rack can bear the thick glass processing of the original piece;

（四）All stainless steel water tank.
