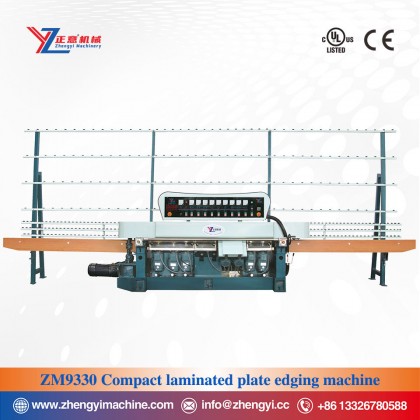

ZM9330 Compact Laminated Plate Edging Machine

ZM9330 Compact-panel edging machine

Mechanical introduction：
ZM9330 compact-panel edging machine is suitable for grinding various flat plates such as compact-panel, physical and chemical plate, epoxy resin board, etc. The machine can process straight edge and angular grinding of different sizes and thicknesses, and the coarse fine grinding and polishing are successful at one time; when adjusting different processing thicknesses, you can refer to the digital display table on the front beam to adjust, and the front chamfer grinding head can move synchronously with the front beam. It adopts frequency conversion speed regulation, which has the advantages of advanced structure, high precision, convenient operation, and continuous processing of the same thickness; It is suitable for high-volume processing of compact-panel, physical and chemical boards, epoxy resin boards and other flat plates.

Technical parameters:
1.Edge grinding speed：0-8m/min
2.Glass thickness：3-30mm
3.Min glass size：80mm
4.Max glass size：2440*3660mm
5.Total power：18.5KW
6.Total weight： 2800Kg
7.Machine overall size:6.8x1.0x2.5m
